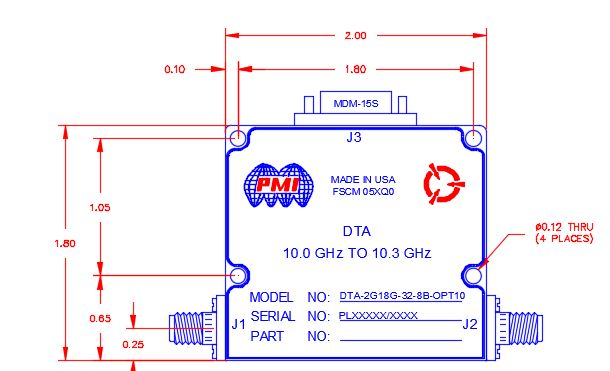

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 10 to 10.3 |
|---|
| Frequency Min (GHz): | 10 |
|---|
| Frequency Max (GHz): | 10.3 |
|---|
| Attenuation Range (dB): | 32 dB |
|---|
| Mean Attenuation Range: | 32 dB |
|---|
| Attenuation Flatness (dB): | ±1 dB @ 20 dB,
±1.25 dB @ 40 dB,
±3 dB @ 60 dB |
|---|
| Accuracy of Attenuation: | 0 to 20 dB: ±1 dB Typ
20 to 40 dB: ±1.5 dB Typ
40 to 60 dB: ±2 dB Typ |
|---|
| Insertion Loss (dB): | 3 dB |
|---|
| Minimum Attenuation Step: | 0.125 dB |
|---|
| VSWR: | 1.5:1 Max |
|---|
| Survival Power: | 1 W average from -65 to +25 °C |
|---|
| Logic Input: | Logic "0" (BIT OFF) = -0.3 to +0.8 V
Logic "1" (BIT ON) = +2 to +5 V |
|---|
| Operating Power: | 20 dBm |
|---|
| DC Power Supply: | +12 to +15 VDC @ 150 mA Max |
|---|
| Switching Speed: | ON TIME: 1 µs Max
OFF TIME: 0.5 µs Max |
|---|
| Digital Control: | 8 Bit |
|---|
| Connectors: | RF: SMA Female
Control & Power: 15 PIN Micro-D-male,
(Mating Connector Supplied) |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 3 oz (85 gm) approximate |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
