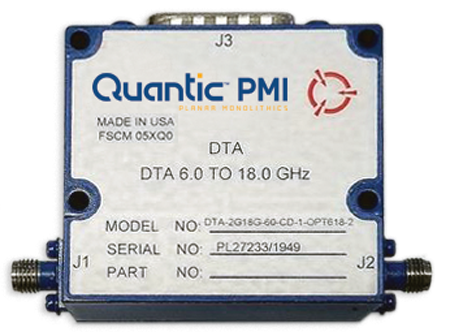

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 6.0 to 18.0 GHz |
|---|
| Frequency Min: | 6 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss: | 4.5 dB Max |
|---|
| Attenuation Range: | 60 dB |
|---|
| Digital Control: | 10-BIT Binary TTL |
|---|
| LSB: | 0.06 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Survival Power: | 2 W Average from -65 ºC to +25 ºC |
|---|
| Attenuation Flatness: | ±1.0 dB @ 20 dB Attenuation,
±1.25 dB @ 40 dB Attenuation,
±3.0 dB @ 60 dB Attenuation |
|---|
| Attenuation Accuracy: | ±1.0 dB @ 0 dB to 20 dB Attenuation,
±1.5 dB @ 20 dB to 40 dB Attenuation,
±2.0 dB @ 40 dB to 60 dB Attenuation |
|---|
| Swiching Time: | 1 µs Max |
|---|
| Input Tracking: | Monotonic |
|---|
| Power Supply: | +15 @ 100 mA Max / -15 @ 100 mA Max |
|---|
| Connectors: | SMA Female |
|---|
| DC Connector: | 15 Pin D-Sub Female (Mating Connector Supplied) |
|---|
| Size: | 2.00" x 1.81" x 0.88" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +110 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
