DTA-2G18G-64-10B-SFF Active
10 Bit Pin Diode Attenuator
Additional Documents
- Product Feature
- Test Report - 3/17/15
- PL16781 - Unit Data
- PL16782 - Unit Data
- PL16783 - Unit Data
- PL16784 - Unit Data
- PL16785 - Unit Data
- PL16786 - Unit Data
- PL22645 - Unit Data
- PL22646 - Unit Data
- PL22647 - Unit Data
- PL22648 - Unit Data
- PL26209 - Unit Data
- PL26210 - Unit Data
- PL26211 - Unit Data
- PL26212 - Unit Data
- PL27106 - Unit Data
- PL36513 - Unit Data
- PL36514 - Unit Data
- PL36514-1 - Unit Data
- PL36515 - Unit Data
- PL36516 - Unit Data
- PL39953 - Unit Data
- PL39954 - Unit Data
- PL39955 - Unit Data
- PL39969 - Unit Data
- PL39970 - Unit Data
- PL39971 - Unit Data
- PL39972 - Unit Data
- PL39973 - Unit Data
- PL39974 - Unit Data
- PL39975 - Unit Data
- PL39976 - Unit Data
- PL39977 - Unit Data
- PL42334 - Unit Data
- PL42335 - Unit Data
- PL52457 - Unit Data

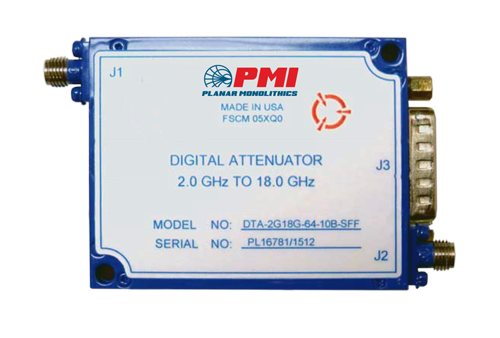

PMI Model DTA-2G18G-64-10B-SFF is a 10 Bit programmable 64 dB PIN Diode Attenuator with a step resolution of 0.06 dB over the frequency range of 2 to 18 GHz with an insertion loss is 5.25 dB, the VSWR of 2:1, and has a +15 VDC power supply at 150 mA. Housing measures of 2.5” x 2.0” x 1.0” with 15 Pin Micro-D female control connector (Mating Connector Supplied) and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Attenuation Range (dB): | 64 dB |
| Mean Attenuation Range: | 0.06 dB |
| Attenuation Flatness (dB): | ±1 dB @ 20 dB, ±1.25 dB @ 40 dB, ±3 dB @ 60 dB |
| Attenuation Accuracy (dB): | ±1 dB @ 0 to 20 dB, ±1.5 dB @ 20 to 40 dB, ±2 dB @ 40 to 60 dB |
| Insertion Loss (dB): | 5.25 dB Max |
| Insertion Loss (Measured): | 5.25 dB Max - Measured 5.12 dB |
| VSWR: | 2.0:1 Max - Measured 1.49:1 |
| Operating Input Power: | 15 dBm CW Typ |
| Power Supply: | +15 VDC, 150 mA Max |
| Logic Input: | Logic "0" (BIT OFF): -0.3 to +0.8 V Logic "1" (BIT ON): -2 to +5 V |
| Digital Control: | 10 Bit TTL |
| DC Connector: | ITT Cannon DA-15P or Equiv (Mating Connector Supplied) |
| Connectors: | SMA Female |
| Size: | 2.5” x 2.0” x 1.0” |
| Finish: | Painted Blue (Mounting surface free of paint) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
