| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 80 dB |
|---|
| Attenuation Flatness (dB): | ±1 dB Max @ 0 to 30 dB,
±1.5 dB Max @ 30 to 40 dB,
±2.5 dB Max @ 40 to 50 dB,
±4 dB Max @ 50 to 80 dB |
|---|
| Attenuation Accuracy (dB): | ±2.5 dB Max @ 0 to 20 dB,
±1.5 dB Max@ 20 to 30 dB,
±1.5 dB Max @ 30 to 50 dB,
±2 dB Max @ 50 to 80 dB |
|---|
| Insertion Loss (dB): | 6 dB Max |
|---|
| Step Size: | 0.16 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Operating Input Power: | 20 dBm CW Max,
10 dBm (0.3 GHz or below) |
|---|
| Survival Power: | 30 dBm CW Max
27 dBm (0.3 GHz or below) |
|---|
| Power Supply: | +12 VDC @ 375 mA Max
-12 VDC @ 50 mA Max |
|---|
| Digital Control: | 9 BIT True Binary Logic |
|---|
| Connectors: | RF: SMA Female - removable
Control & Power: 15 PIN Micro-D-female,
(Mating Connector Supplied) |
|---|

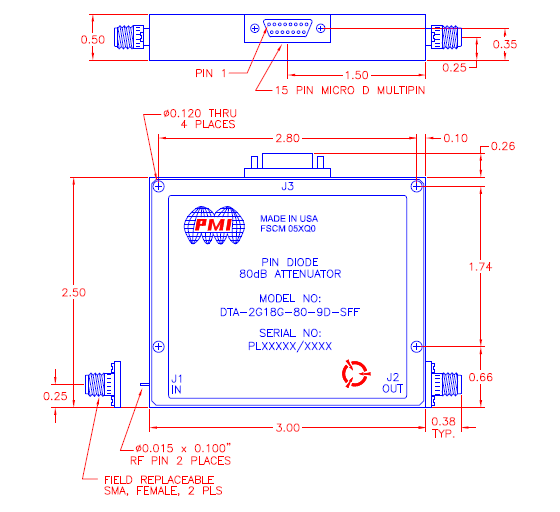

| Size: | 3.0" x 2.5" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +125 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
