| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 2 to 20 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Attenuation Range (dB): | 64 dB |
|---|
| Attenuation Flatness (dB): | ±1 dB @ 20 dB
±1.25 dB @ 40 dB
±3 dB @ 60 dB |
|---|
| Attenuation Accuracy (dB): | ±1 dB @ 0 to 20 dB
±1.5 dB @ 20 to 40 dB
±2 dB @ 40 to 60 dB |
|---|
| Insertion Loss (dB): | 6.5 dB Max |
|---|
| Attenuation Control: | 10 Bit TTL |
|---|
| LSB: | 0.06 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Logic Input: | Logic "0" (BIT Off): -0.3 to +0.8 V
Logic "1" (BIT On): +2 to +5 V |
|---|
| Speed: | 1 µs Max |
|---|
| Input Power: | 15 dBm CW Typ |
|---|
| DC Supply: | +15 VDC, 150 mA Max |
|---|
| PWR/CTL Connectors: | ITT Cannon DA-15P or Equivalent (Mating Connector Supplied) |
|---|
| Digital Control: | 10 Bit |
|---|
| Connectors: | RF: SMA Female
Control & Power: 15 PIN Micro-D-female,
(Mating Connector Supplied) |
|---|

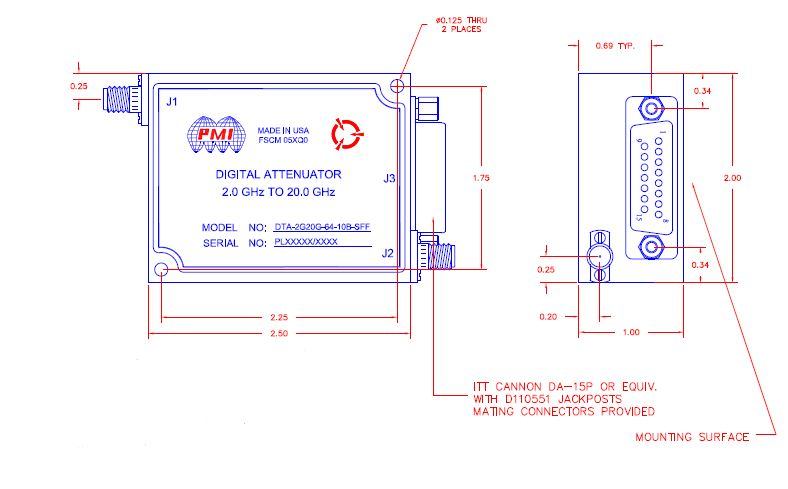

| Size: | 2.5" x 2.0" x 1.0" |
|---|
| Finish: | Painted Blue (Mounting Surface Free of Paint, Gold) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
