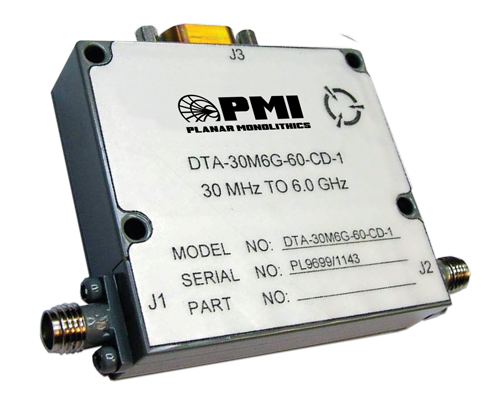

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.03 to 6.0 GHz |
|---|
| Frequency Min: | 0.03 GHz |
|---|
| Frequency Max: | 6 GHz |
|---|
| Insertion Loss: | 4.0 dB Max |
|---|
| Insertion Loss (Measured): | 4.0 dB Max - Measured 3.21 dB |
|---|
| Attenuation Range: | 60 dB |
|---|
| Digital Control: | 8-BIT Binary TTL |
|---|
| Operating Input Power: | +20 dBm |
|---|
| Attenuation Flatness: | ±1.0 dB @ 10 dB - Measured ±0.25 dB,
±1.5 dB @ 20 dB - Measured ±0.25 dB,
±3.0 dB @ 40 dB - Measured ±0.25 dB,
±5.0 dB @ 60 dB - Measured ±0.25 dB |
|---|
| Attenuation Accuracy: | ±1.0 dB @ 0 to 30 dB - Measured ±0.25 dB,
±1.3 dB @ 30 to 50 dB - Measured ±0.25 dB,
±1. 5 dB @ 50 to 60 dB - Measured ±0.25 dB |
|---|
| Swiching Time: | 50 µs Max - Measured 10 µs |
|---|
| Return Loss: | -8.5 dB Max - Measured 8.92 dB |
|---|
| Input Tracking: | Monotonic |
|---|
| Power Supply: | +12 VDC @ 155 mA Max |
|---|
| Connectors: | SMA Female |
|---|
| DC Connector: | 15 Pin Micro-D Female (mating Connector Supplied) |
|---|
| Size: | 2.00" x 1.81" x 0.50" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
