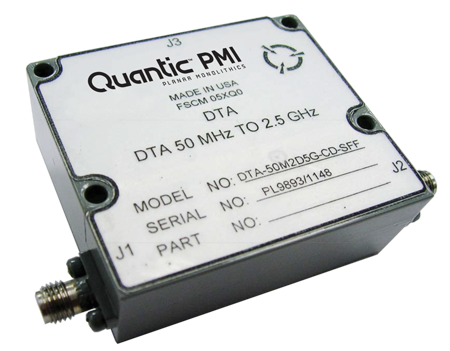

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.05 to 2.5 |
|---|
| Frequency Min (GHz): | 0.05 |
|---|
| Frequency Max (GHz): | 2.5 |
|---|
| Attenuation Range (dB): | 60 dB |
|---|
| Attenuation Step Size - LSB (dB): | 0.06 dB |
|---|
| Attenuation Flatness (dB): | ±1 dB @ 20 dB,
±1.25 dB @ 40 dB,
±3 dB @ 60 dB |
|---|
| Attenuation Accuracy (dB): | ±1 dB @ 0 dB to 20 dB,
±1.5 dB @ 20 dB to 40 dB,
±2 dB @ 40 dB to 60 dB |
|---|
| Insertion Loss (dB): | 4.5 dB Max |
|---|
| LSB: | 0.06 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Operating Input Power: | Up to 50 mW CW |
|---|
| Input Tracking: | Monotonic |
|---|
| Power Supply: | +15 VDC @ 100 mA Max
-15 VDC @ 100 mA Max |
|---|
| Digital Control: | 10 BIT TTL |
|---|
| DC Connector: | 15 Pin D-Sub Female (mating Connector Supplied) |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.0" x 1.8" x 0.88" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -50 ºC to 100 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
