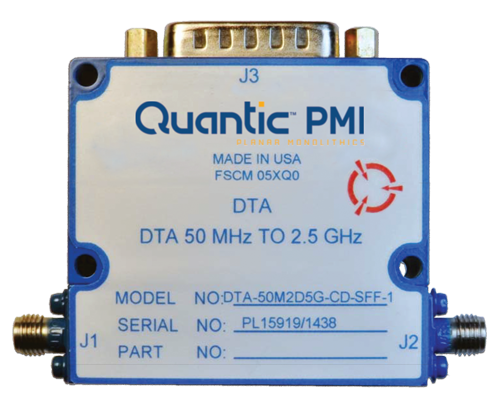

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.05 to 2.5 |
|---|
| Frequency Min (GHz): | 0.05 |
|---|
| Frequency Max (GHz): | 2.5 |
|---|
| Attenuation Range (dB): | 60 dB |
|---|
| Attenuation Step Size - LSB (dB): | 0.06 dB |
|---|
| Attenuation Flatness (dB): | ±0.6 dB Max @ 20 dB,
±0.75 dB Max @ 40 dB,
±2.5 dB Max @ 60 dB |
|---|
| Attenuation Accuracy (dB): | ±0.5 dB Max @ 0 to 20 dB,
±0.75 dB Max @ 20 to 40 dB,
±1.5 dB Max @ 40 to 60 dB |
|---|
| Insertion Loss (dB): | 4.5 dB Max |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Survival Power: | 1 W average from -65 to +25 °C |
|---|
| Swiching Time (On Time): | 0.75 µs Max |
|---|
| Swiching Time (Off Time): | 0.45 µs Max |
|---|
| Power Supply: | +15 VDC @ 50 mA Max
-15 VDC @ 50 mA Max |
|---|
| Logic Input: | Logic "0" (BIT OFF) = -0.3 to +0.8 V
Logic "1" (BIT ON) = +2 to +5 V |
|---|
| Digital Control: | 10 Bit |
|---|
| Connectors: | RF: SMA Female
Control & Power: 15 PIN Micro-D-female,
(Mating Connector Supplied including pigtails >24" length) |
|---|
| Size: | 2.0" x 1.8" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | ~3 oz (85 gm) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -50 ºC to 100 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
