| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 5 to 6 |
|---|
| Frequency Min (GHz): | 5 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Attenuation Range (dB): | 80 dB |
|---|
| Attenuation Step Size - LSB (dB): | 0.08 dB |
|---|
| Attenuation Flatness (dB): | ±0.5 dB Typ, @10 dB,
±1.4 dB Typ @ 20 dB,
±3 dB Typ @ 40 dB,
±3.5 dB Typ @ 60 dB,
±3.6 dB Typ @ 80 dB |
|---|
| Insertion Loss (dB): | 2.5 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Operating Input Power: | 100 mW Max |
|---|
| Monotonicity: | Guaranteed |
|---|
| Power Supply: | +12 to +15 VDC @ 120 mA
-12 to -15 VDC @ 50 mA |
|---|
| Digital Control: | 11 BIT TTL |
|---|
| Connectors: | RF: SMA Female
Control & Power: 15 PIN Micro-D-female |
|---|

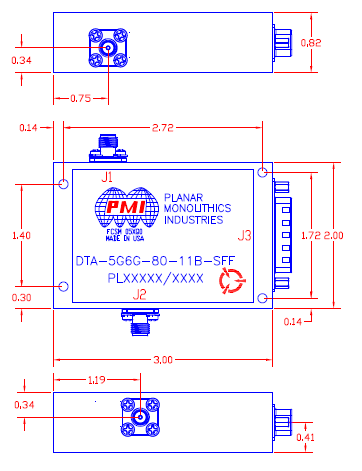

| Size: | 3.0" x 2.0" x 0.82" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +71 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to 100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
