| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 9 to 26.5 |
|---|
| Frequency Min (GHz): | 9 |
|---|
| Frequency Max (GHz): | 26.5 |
|---|
| Attenuation Range (dB): | 60 dB |
|---|
| Attenuation Flatness (dB): | ±1.5 dB Typ @ 20 dB
±2 dB Typ @ 40 dB
±5 dB Typ @ 60 dB |
|---|
| Attenuation Accuracy (dB): | 0 to 20 dB: ±1 dB Typ
20 to 40 dB: ±1.5 dB Typ
40 to 60 dB: ±2 dB Typ |
|---|
| Insertion Loss (dB): | 8 dB Typ |
|---|
| Minimum Attenuation Step: | 0.06 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Operating Input Power: | 20 dBm Typ |
|---|
| Survival Power: | 1 W average from -65 ºC to +2 ºC |
|---|
| Swiching Time (On Time): | 1 µs Max |
|---|
| Swiching Time (Off Time): | 0.5 µs Max |
|---|
| Power Supply: | +15 V @ 150 mA Max |
|---|
| Logic Input: | -0.3 to +0.8 V (Logic "0" (BIT Off)
+2 to +5 V (Logic "1" (BIT On) |
|---|
| Digital Control: | 10 Bit |
|---|
| Connectors: | RF: SMA female
Control: 15 Pin Micro-D-Female
(Shipped with mading Micro-D-Male) |
|---|

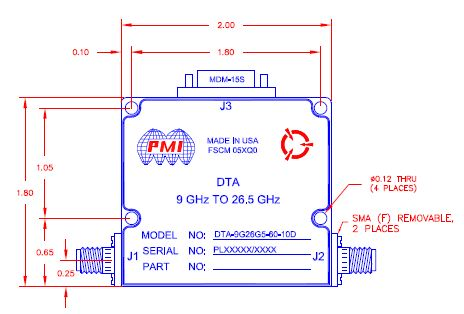

| Size: | 2.0" x 1.8" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 3 oz (8 gm) approx |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
