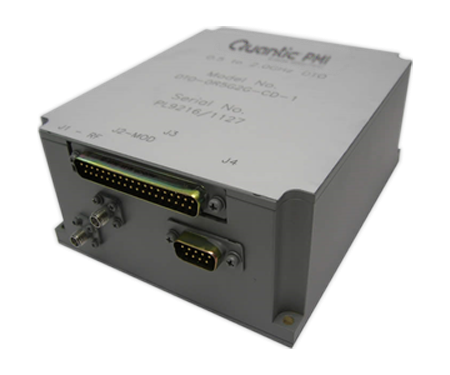

DTO-2G6G-CD-1

PMI Model No. DTO-2G6G-CD-1 is a digitally controlled oscillator (DTO's) covering the frequency range of 2.0GHz to 6.0GHz. This model is designed to withstand stringent military ground or airborne environments. Incorporated in the design is the latest internal digital calibration techniques such that frequency drift over the operating temperature range is minimal. This unit offers fast switching speeds and a stable frequency output with low phase noise

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 6.0 GHz
Frequency Min: 2 GHz
Frequency Max: 6 GHz
Frequency Accuracy: ±2.0MHz Max. @ +25C
Frequency Drift: ±0.1MHz/C Max.
Frequency Settling: ±2.5MHz Max. within 1usec.
Modulation Bandwidth (3dB): DC to 14MHz Min.
Bandwidth Sensitivity Variation: 1.1:1 Max.
Frequency Deviation Bandwidth: ±200MHz Min. @ 5V peak-peak
Output Power: +2 to +8dBm Min.
RF Power Variation: ±2.5dB Max. Including temperature and frequency
Phase Noise: -65dBc/Hz typ. @ 100kHz offset
Harmonics: -45dBc Max.
Spurious: -45dBc Max.
Linearized Frequency Tuning Step Size: LSB 1.0MHz Nominal for full-band
DC Power: +15V ± 0.5V, -15V ± 0.5V, +5V ± 0.5V, +28V ±
Pulling: ±2MHz Max. @ VSWR 2:1
Pushing: 1MHz/V Max.
Environmental Ratings:
Operating Temperature: -40ºC to +70ºC
Non-Operating Temperature: -40ºC to +100ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107G Cond. A
