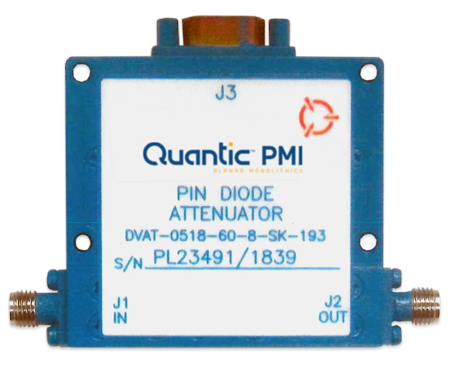

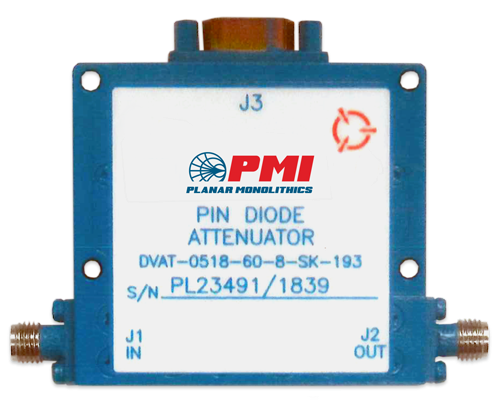

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 60 dB |
|---|
| Attenuation Step Size - LSB (dB): | 0.25 dB |
|---|
| Attenuation Flatness (dB): | ±0.9 dB @ 10 dB,
±1.5 dB @ 20 dB,
±3 dB @ 40 dB,
±5 dB @ 60 dB |
|---|
| Attenuation Accuracy (dB): | ±1 dB @ 0 dB to 30 dB,
±1.3 dB @ 30 dB to 50 dB,
±1.5 dB @ 50 dB to 60 dB |
|---|
| Insertion Loss (dB): | 4 dB Max |
|---|
| Operating Input Power: | 20 dBm |
|---|
| Monotonicity: | Guaranteed |
|---|
| Temperature Variation: | ±2.5 dB (-10 to +85 ºC Typ),
±3.5 dB (- 40 to +95 ºC Typ) |
|---|
| Swiching Time: | 5 µs Max |
|---|
| Small Signal Bandwidth: | 100 kHz Typ (6 dB with ±3 dB sinewave) |
|---|
| Large Signal Bandwidth: | 50 kHz Typ (30 dB with ±30 dB sinewave) |
|---|
| Return Loss: | -12 dB Typ
-8.5 dB Max |
|---|
| Analog Control Option: | 0-6 V Analog Voltage, 10 dB/Volt |
|---|
| Power Supply: | +12 to +15 VDC @ 150 mA Max |
|---|
| Digital Control: | 8 BIT TTL |
|---|
| Connectors: | RF: SMA Female - Field Replaceable
Control & Power: 15 PIN Micro-D-female,
(Mating Connector Supplied) |
|---|
| Size: | 2.0" x 1.81" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC Operating |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
