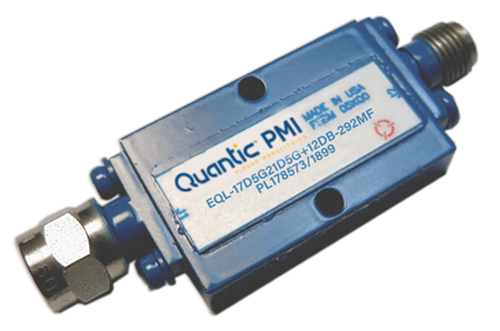

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 17.5 to 21.5 |
|---|
| Frequency Min (GHz): | 17.5 |
|---|
| Frequency Max (GHz): | 21.5 |
|---|
| Input Power Max: | 0.5 W CW |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Insertion Loss (dB): | 6 dB Max |
|---|
| Slope: | This equilizer has a positive slope which equalizes cable loss. |
|---|
| Slope (Frequency/Amplitude): | 17.5 GHz / -13.3 dB,
18 GHz / -12.3 dB,
18.5 GHz / -11.3 dB,
19 GHz / -10 dB,
19.5 GHz / -8.4 dB,
20 GHz / -6.5 dB,
20.5 GHz / -4.4 dB,
21 GHz / -2.2 dB,
21.5 GHz / 0 dB |
|---|
| Accuracy @ Defined Points: | ±0.1 dB |
|---|
| Connectors In / Out: | 2.92mm Male / Female |
|---|
| Size: | 1.10" x 0.67" x 0.22" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
