EQL-17D5G21D5G+2DB-292MF Active

Passive Amplitude Equalizer

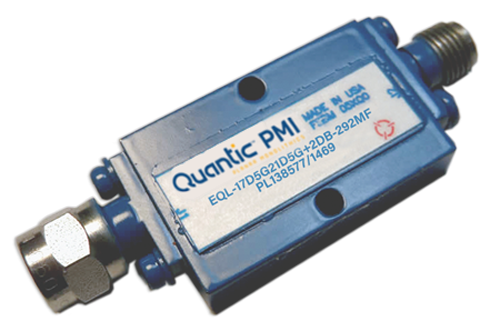

Quantic PMI Model EQL-17D5G21D5G+2DB-292MF is a passive amplitude equalizer that operates over the frequency range of 17.5 to 21.5 GHz that has a maximum input power of 0.5 W CW and a maximum VSWR of 2.0:1. The unit is supplied with 2.92mm connectors in a housing that measures 1.1" x 0.67" x 0.22".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 17.5 to 21.5
Frequency Min (GHz): 17.5
Frequency Max (GHz): 21.5
Input Power Max: 0.5 W CW
VSWR: 2.0:1 Max
Insertion Loss (dB): 6 dB Max
Slope: This equalizer has a positive slope which equalizes cable loss.
Slope (Frequency/Amplitude): 17.5 GHz / -1.7 dB,
18 GHz / -1.6 dB,
18.5 GHz / -1.5 dB,
19 GHz / -1.4 dB,
19.5 GHz / 1.2 dB,
20 GHz / -0.9 dB,
20.5 GHz / -0.6 dB,
21 GHz / -0.3 dB,
21.5 GHz / 0 dB
Accuracy @ Defined Points: ±0.1 dB
Connectors In / Out: 2.92mm Male / Female
Size: 1.10" x 0.67" x 0.22"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
