EQL-32D5G36D5G-2D9DB-292MF Preliminary

Passive Amplitude Equalizer

EQL-32D5G36D5G-2D9DB-292MF
Product Feature

Quantic PMI Model EQL-32D5G36D5G-2D9DB-292MF is a 32.5 to 36.5 GHz passive amplitude equalizer with a negative slope which simulates cable loss.  This equalizer has a maximum input power of 0.5 W, a maximum VSWR of 1.5:1, a maximum insertion loss of 1.1 dB, and an amplitude accuracy of ±0.25 dB, has 2.92mm male / female connectors, and the housing size is 1.10" x 0.67" x 0.22".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 32.5 to 36.5
Frequency Min (GHz): 32.5
Frequency Max (GHz): 36.5
Input Power Max: 0.5 W CW
VSWR: 1.5:1 Typ, 2.0:1 Max
Insertion Loss (dB): 1.2 dB Max (@ 32.5 GHz)
Slope (Frequency/Amplitude): -0.725 ± 0.125 dB / GHz
Amplitude Accuracy: ±0.25 dB (Compared to best fit straight line)
Connectors In / Out: SMA Male / Female

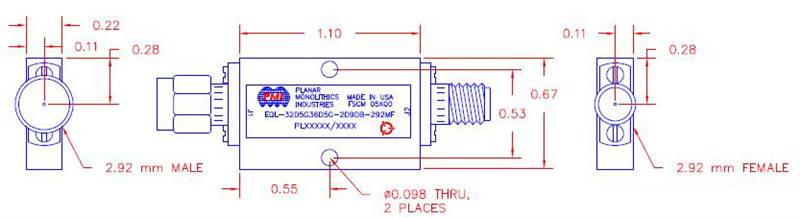

Size: 1.10" x 0.67" x 0.22"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
