EQL-DC20-40-SMM

Passive Equalizer

EQL-DC20-40-SMM
Product Feature

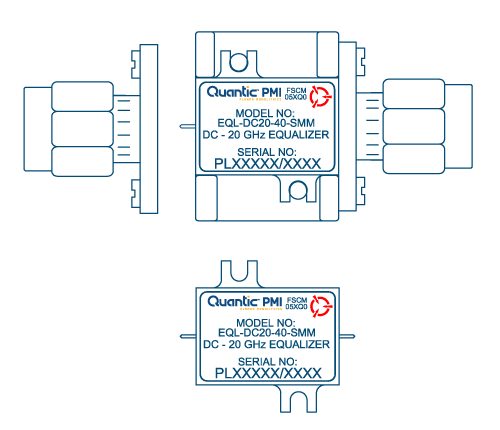

Quantic PMI Model EQL-DC20-40-SMM is a DC to 20 GHz passive equalizer with a 40 dB loss at DC with a insertion loss of 1 dB at 20 GHz that allows both forward and reverse measurement to be equivalent. Package size is 0.53" x 0.56" x 0.18" with removable SMA male connectors. Ideal for connectorized or surface mount applications.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): DC to 20
Frequency Min (GHz): DC
Frequency Max (GHz): 20
VSWR: 1.8:1 Typ,
2.0:1 Max
Insertion Loss (dB): 40 dB Typ (@ DC),
2 dB Typ (@ 20 GHz)
Connectors In / Out: SMA Male - removable
Finish: Gold Plated
Weight: 1 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
