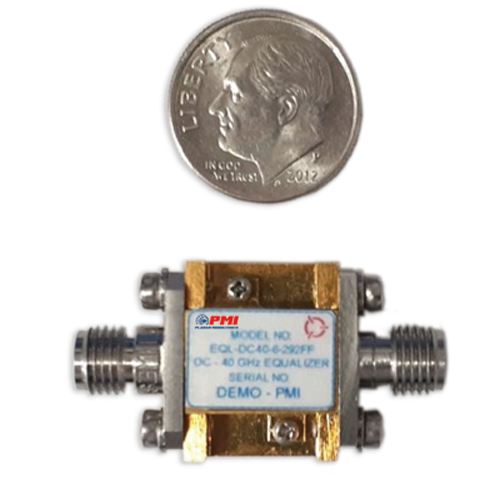

EQL-DC40-6-292FF Active
Passive Equalizer
Additional Documents
PMI Model EQL-DC40-6-292FF is a DC to 40 GHz Passive Equalizer with an insertion loss of 6 dB at 0.01 GHz and a 2 dB at 40 GHz. The equalizer design allows both forward and reverse measurement to be equivalent. Housing size is 0.53" x 0.7" x 0.26" with removable 2.92mm female connectors. Dual use connectorized or a surface mount component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | DC to 40 |
| Frequency Min (GHz): | DC |
| Frequency Max (GHz): | 40 |
| Input Power Max: | 30 dBm (1 W) |
| VSWR: | 1.6:1 Typ, 1.8:1 Max |
| Slope (Frequency/Amplitude): | 0.15 ± 0.05 dB / GHz Typ |
| Amplitude Accuracy: | ±1 dB Typ (Compared to Best Fit Straight Line) |
| Connectors In / Out: | 2.92mm Female |
| Size: | 0.53" x 0.70"x 0.26" |
| Finish: | Gold Plated |
| Weight: | 10 gms |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
