| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| CW Immune (Yes/No): | Yes |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -70 |
|---|
| TSS (Measured): | -70 dBm |
|---|
| Log Slope (mV/dB): | 50 |
|---|
| Log Range (dBm): | -65 to 5 |
|---|
| Log Linearity: | ±1.0 dB Max |
|---|
| Rise Time: | 25 ns Max |
|---|
| Recovery Time: | 350 ns Max, Measured from edge of 10 µs pulse to leading edge of next 10 µs pulse to within 1 dB voltage level |
|---|
| Settling Time: | 50 ns Max, 10% Output to ±0.5 of Final Value |
|---|
| Power Supply: | +15 VDC @ 400 mA Max,
-15 VDC @ 150 mA Max |
|---|
| Dynamic Range Log: | -65 to 5 dBm |
|---|
| Cooling: | Conduction cooling at mounting surface |
|---|
| Frequency Flatness: | ±2.0 dB Typ |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Video Load (Ohms): | 75 |
|---|
| Video Output Level: | -65 dBm: 150~400 mV, 250 mV (Center) |
|---|
| DC Offset: | ±150 mV Typ |
|---|
| Max Input Level: | +20 dBm CW |
|---|
| Noise Level: | 75 mV, RMS Max, without RF |
|---|
| Signal Capability: | Pulse (50 ns to 300 µs), Pulse on CW |
|---|
| Connectors: | SMA (F) - removable |
|---|

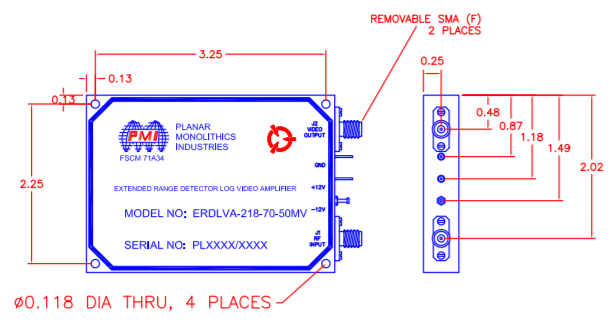

| Size: | 3.5" x 2.5" x 0.5",
88.9 mm x 63.5 mm x 12.7 mm |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -20 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 Cond A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C, Cond B |
|---|
