ERDLVA-218-73-50MV Active

Ultra-small CW Immune Extended Range Detector Log Video Amplifier (ERDLVA)

ERDLVA-218-73-50MV
Product Feature

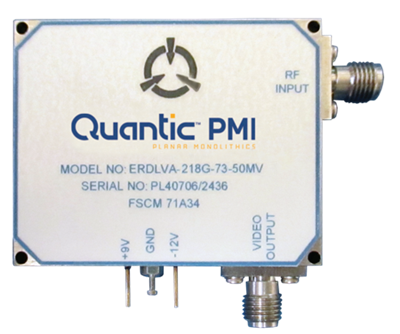

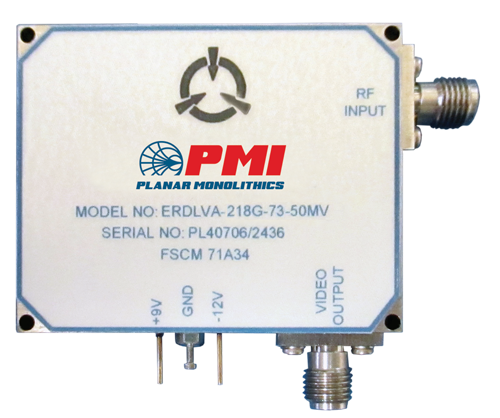

Quantic PMI Model ERDLVA-218-73-50MV is a CW Immune Extended Range Detector Log Video Amplifier (ERDLVA) that operates from 2 to 18 GHz with a dynamic range of -68 to +5 dBm and the ability to interface with a long cable (30 meters), while maintaining high speed and flatness. This model has SMA female connectors and offers an ultra-small package size of 1.90" x 1.50" x 0.31".

Product Specifications

General Parameters:
Status: Active
CW Immune (Yes/No): Yes
Frequency Min (GHz): 2
Frequency Max (GHz): 18
TSS (dBm): -70 Max
Log Slope (mV/dB): 50 ± 5 mV/dB into 100 Ohm Load
Log Range (dBm): -68 to +5
Log Linearity: ±1.5 dB Max
Rise Time: 25 ns Max
Recovery Time: 400 ns Max
Power Supply: +12 VDC @ 330 mA Max
-12 VDC @ 100 mA Max
Dynamic Range Log: -68 to +5 dBm
Frequency Flatness: ±2.0 dB Max
Video Load (Ohms): 100
CW Immunity: TSS to -40 dBm (-30 dBm Goal)
DC Offset: +100 ± 75 mV
Max Input Level: +20 dBm CW
Input VSWR: 2.5: 1 Max
Pulse Response: Pulse (50 ns - 100 µs)
Baseline Shift: 100 mV Max
Size: 1.90" x 1.50" x 0.31"
Finish: Gold Plating per MIL-G-452048
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -30 °C to +85 °C
Non-Operating Temperature: -30 °C to +100 °C
Humidity: MIL-STD-810F, METHOD 507.4
Shock: MIL-STD-810F, METHOD 516.5
Vibration: MIL-STD-810F, METHOD 514.5
Salt Fog: MIL-STD-810D, METHOD 509
