ERDLVA-218-DC-LPD Active
Extended Dynamic Range Detector Log Video Amplifier (ERDLVA)

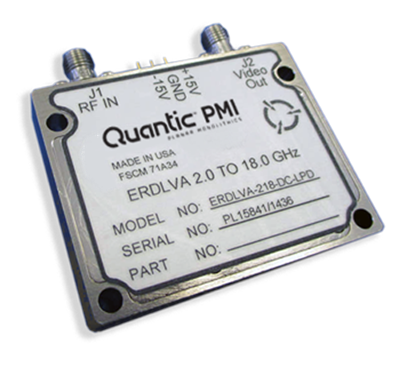

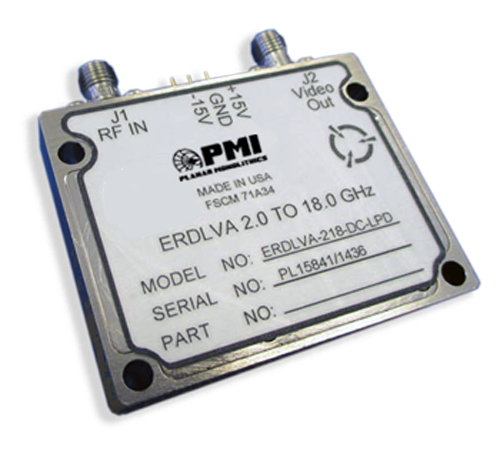

PMI Model ERDLVA-218-DC-LPD is an Extended Dynamic Range Detector Log Video Amplifier (ERDLVA) designed to operate over the 2 to 18 GHz frequency range. Employs planar diode detectors and integrated video circuitry high-speed performance and outstanding reliability. Superior construction using state of the art MIC/MMIC technology. Package size is 2.04" x 1.67" x 0.472" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| TSS (dBm): | -64 Max |
| TSS (Measured): | -64 dBm Max (Video In) - Measured -65 dBm |
| Output Voltage: | Voltage output of 1200 mVDC with a tolerance of ±50 mV with -55 dBm @ 10 GHz input |
| Log Slope (mV/dB): | 85 |
| Log Range (dBm): | -60 to +4 |
| Log Linearity: | ±0.5 dB Typ, ±1 dB Max |
| Rise Time: | 20 ns |
| Recovery Time: | 500 ns |
| Power Supply: | +12 to +15 VDC @ 190 mA Max, -12 to -15 VDC @ 100 mA Max |
| VSWR: | 3.0:1 Max |
| Flatness: | ±1.5 dB |
| Video Load (Ohms): | 75 |
| Pulse Width Range: | 50 ns to CW |
| Output Stability vs Temp: | ±1 dB |
| Baseline Noise: | 0 VDC with a tolerance of +150 mVDC Max to -0.5 mVDC at the DLVA Output |
| Connectors: | SMA Female |
| Size: | 2.040" x 1.67" x 0.472" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -57 ºC to +85 ºC |
