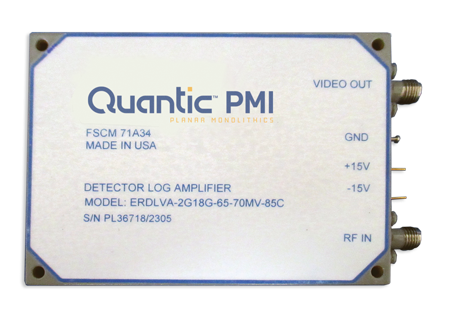

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| CW Immune (Yes/No): | Yes |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -71 |
|---|
| Log Slope (mV/dB): | 70 ± 3 @ 25 °C |
|---|
| Log Range (dBm): | -65 to 0 |
|---|
| Rise Time: | 28 ns Max (10-90% @ -65 to 0 dBm) |
|---|
| Fall Time: | 300 ns Max (@-40 & -10 dBm) |
|---|
| Settling Time: | 50 ns Max (From 10% to within +/- 70 mV of final value @ -10 dBm) |
|---|
| Video Load (Ohms): | 75 |
|---|
| CW Immune Time at CW = -40 dBm: | 4 ms Max |
|---|
| Propagation Delay: | 50 ns Max from 50% RF to 10% video |
|---|
| Dynamic Range: | -65 to 0 dBm |
|---|
| Absolute Log Accuracy: | +/-2.6 dB Max for all frequencies, dynamic range, and temperatures 0°C to +85°C |
|---|
| Pulse Width Process Range: | 100 ns to 300 µs |
|---|
| Pulse Density Capability: | 10% duty @ 100 ns PW, 70% Duty @ 300 µs PW at peak power -10 dBm with acceptable 1 dB pulse amplitude and baseline variable |
|---|
| Noise Level: | 160 mV P-P Max |
|---|
| DC Power: | ±15 V ± 5% @ 0.5 A Max for +15 V @ 0.2 A Max for -15 V |
|---|
| DC Offset @ 25°C: | -70 to +70 mV |
|---|
| Stabilization Bake: | 24 Hours @ +85°C |
|---|
| Burn In: | 48 Hours @ +85°C power on |
|---|
| Input VSWR: | 2.2:1 Max |
|---|
| Ripple from DC to 10 MHz: | 100 mV Max |
|---|
| CW Recovery Time at CW = -40 dBm: | 20 µs Max |
|---|
| MTBF: | 40 KH @ 50°C |
|---|
| Connectors: | SMA Female (Mechanically Captivated) |
|---|
| Size: | 3.5" x 2.5" x 0.5" |
|---|
| Sealing: | Hermetic |
|---|
| Finish: | Gold Plated
Engraved label |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Thermal Shock: | -40 °C to +85 °C, 10 cycles 1 hour dwell time at each temp, rate of temp change 15°C/Min |
|---|
| Random Vibration: | 20 Hz to 2000 Hz, random 16.8 grms in all 3 axis for 15 minutes min |
|---|
