ERDLVA-6G18G-70-50MV Preliminary

Ultra-small CW Immune Extended Range Detector Log Video Amplifier (ERDLVA)

ERDLVA-6G18G-70-50MV
  • ERDLVA-6G18G-70-50MV
  • ERDLVA-6G18G-70-50MV
Product Feature

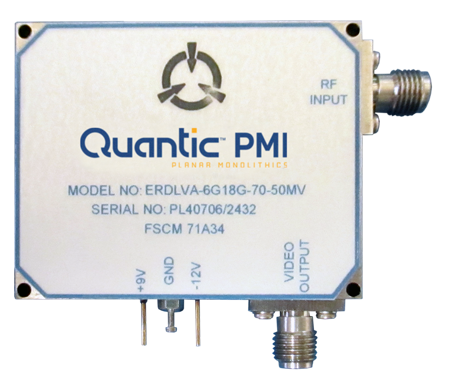

Quantic PMI Model ERDLVA-6G18G-70-50MV is a CW immune Extended Range Detector Log Video Amplifier (ERDLVA) that operates from 6 to 18 GHz with a dynamic range of -65 to +5 dBm and the ability to interface with a long cable (30 meters), while maintaining high speed and flatness. This model has SMA female connectors and offers an ultra-small package size of 1.90" x 1.50" x 0.31".

Product Specifications

General Parameters:
Status: Preliminary
CW Immune (Yes/No): Yes
Frequency Min (GHz): 6
Frequency Max (GHz): 18
TSS (dBm): -70 @ 85 ºC
TSS (Measured): -70 dBm @ 85 ºC
Log Slope (mV/dB): 50 ± 4.0
Log Range (dBm): -65 to + 5
Log Linearity: ±1.5 dB Max
Rise Time: 10 ns Typ, 25 ns Max
Recovery Time: 350 ns Max (0 dBm: PW = 100 µs)
Settling Time: 40 ns
Power Supply: +9 to +12 VDC @ 300 mA Max, +18 V No Damage
-11.5 to -15 VDC @ 120 mA Max
Dynamic Range Log: -65 to +5 dBm
Output Noise: 150 mV P-P, Includes Offset
Frequency Flatness: ±1.75 dB Typ, ±2.0 dB Max
VSWR: 2.5:1 Max
CW Immunity: TSS to -40 dBm (-30 dBm goal)
Propagation Delay: 50% RF to 10% Video
Dynamic Range: 70 dB Min
Pulse Width Range: 50 ns to 250 µs
Log Accuracy: ±1.5 dB Max, ±2.0 dB with temperature
Output Stability vs Temp: ±1.0 dB
Max Input Level: +20 dBm CW
Baseline Shift with CW: 1 dB Max to -15 dBm
Connectors: SMA (F)

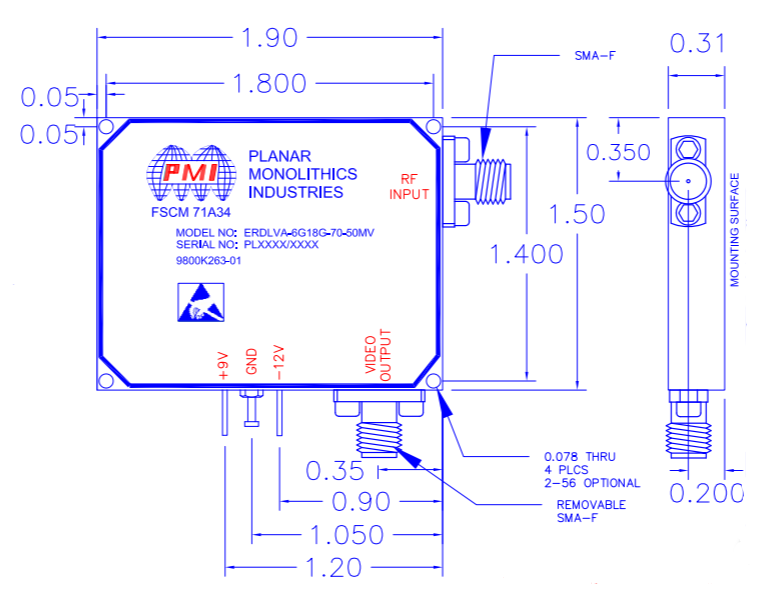

Size: 1.90" x 1.50" x 0.31",
60 mm x 38 mm x 7.9 mm
Finish: Nickel Plate
Weight: Nickel Plate
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to 85 ºC
Non-Operating Temperature: -45 ºC to 90 ºC
