EWDM-8G18G-65-70MV-2 Preliminary

CW Immune EW Detector Module

Product Feature

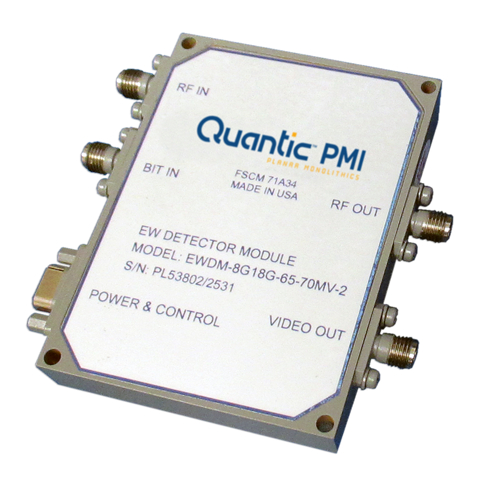

Quantic PMI Model EWDM-8G18G-65-70MV-2 is a CW Immune EW Detector Module that operates from 8 to 18 GHz. This module features an internal switch used to switch between the bit and rf in with input blanking on both ports. In addition, an RF output is provided with a gain of 33 dB minimum. The video output is designed to drive a 100 ft. cable.

Product Specifications

General Parameters:
Type: DLVA
Status: Preliminary
Frequency Range: 8 to 18 GHz
Frequency Min: 8 GHz
Frequency Max: 18 GHz
TSS: -71 dBm
Size: 2.82" x 2.25" x 0.50"
Log Slope: 70 ± 3 mV/dB
Log Range: -65 to 0 dBm
Log Linearity: ±1.0 dB Max
Noise Level: 25mV RMS MAX
Stabilization Bake: 24 Hours @ +85° C
Burn In: 48 Hours @ +85 °C DC Power ON
MTBF: 5000H @ 50 °C
Environmental Ratings:
Operating Temperature: -10 °C to +85 °C
Thermal Shock: -10 °C to +85 °C, 10 cycles 1 Hour Dwell time at each temp, rate of temp change 15 °C/Min
Random Vibration: 20 Hz to 200 0Hz, Random 16.8 Grams in all 3 Axis for 15 Minutes Min
