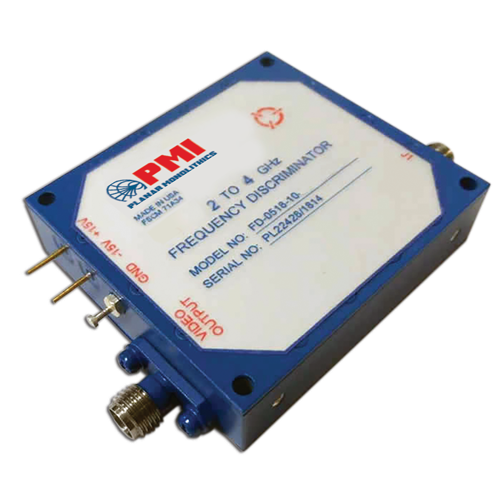

FD-0518-10-2G4G

PMI Model No. FD-0518-10-2G4G is a 2.0 to 4.0 GHz, Frequency Discriminator having a VSWR of 2.0:1 maximum, 1.5:1 typical, and a video output slope of 1V/GHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 2.0 to 4.0 GHz
Input VSWR: 2.0:1 Max, 1.5:1 Typ
Size: 2.00" x 1.80" x 0.50"
Frequency Discriminator Accuracy: ±100 MHz
RF Input Power, Survival: +15 dBm
Video Output Slope: 1 V/GHz Nom
Video Impedance: 100 Ohms Nom
Video Output Rise Time: 20 ns
Connectors: SMA Female
Operating Input Power: +10 dBm nominal, ±0.1 dBm
DC Power Supply: +15 VDC @ +75 mA, -15 VDC @ -75 mA
Weight: 4 oz Max
Finish: Painted Blue
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
