FD-1G-500M-55-SFF

Frequency Discriminator

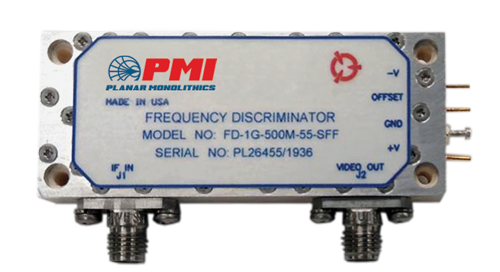

PMI Model No. FD-1G-500M-55-SFF is a Frequency Discriminator that operates at a center frequency of 1.0 GHz. It has a peak-to-peak bandwidth of 500 MHz with an input power dynamic range of -10 to 0 dBm. The sensitivity into a 93 Ohm load is 10 mV/ MHz.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 1 GHz
Frequency Max: 1 GHz
Center Frequency: 1.0 GHz
Input VSWR: 2.0:1 Max
Size: 2.5" x 1.0" x 0.4"
Peak to Peak Bandwidth: 500 MHz Min
Sensitivity: 10 mV / MHz Typ into 93 Ohms
Offset Adjust: ±100 mV Min
Accuracy: ±10 MHz @ +25 °C,
±25 MHz @ 0 °C to +50 °C
Input Dynamic Range: -10 to 0 dBm Min
Rise Time: 10 ns Typ
DC Power Supply: +5 V @ 25 mA Typ (No Load),
-5 V @ 70 mA Typ (No Load)
Weight: 28 grams Typ
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -45 °C to +85 °C
Storage Temperature: -55 °C to +100 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
