FD-30M-6M-1515-1 Active
Frequency Discriminator

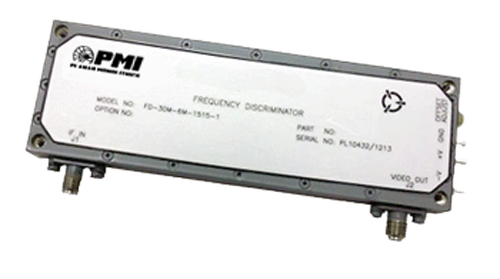

PMI Model FD-30M-6M-1515-1 is a frequency discriminator that operates at a center frequency of 0.03 GHz with a peak-to-peak bandwidth of 0.01 GHz and a linear bandwidth of 6 MHz minimum with a dynamic range of -10 to 0 dBm. The sensitivity into a 50 Ohm load is 1000 mV/MHz. This unit offers a maximum rise time of 120 ns suited for pulsed input with a 1 µs pulse width. Unit size is 4.63” x 1.5” x 0.47” with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.03 |
| Frequency Min (GHz): | 0.03 |
| Frequency Max (GHz): | 0.03 |
| Center Frequency (GHz): | 0.03 |
| Input VSWR: | 2.0:1 Max - Measured ‹2.0:1 |
| Peak to Peak Bandwidth: | 0.01 GHz Min |
| Linear Bandwidth: | 6 MHz Min |
| Sensitivity: | 1000 mV/MHz ± 5% Into 50 Ohm load |
| Linearity: | ±5% |
| Input Dynamic Range: | -10 to 0 dBm |
| Rise Time: | 120 ns Max - Measured ‹120 ns |
| Positive DC Supply: | +15 VDC @ 200 mA Max - Measured 140 mA |
| Negative DC Supply: | -15 VDC @ 100 mA Max - Measured 100 mA |
| Pulse Width: | 1 µs Min |
| Pulse Repetition: | 1 kHz |
| Connectors: | SMA Female |
| Size: | 4.625" x 1.50" x 0.47" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
