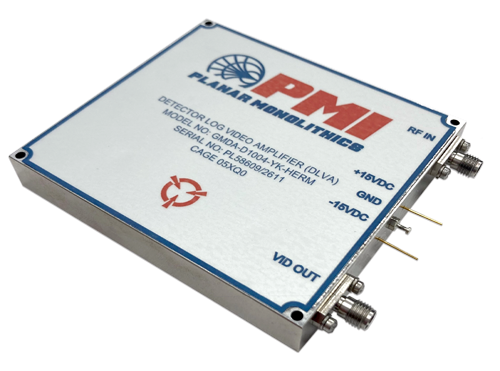

GMDA-D1004-YK-HERM
Extended Dynamic Range Detector Log Video Amplifier (ERDLVA)
Additional Documents
PMI Model GMDA-D1004-YK-HERM is an Extended Dynamic Range DLVA designed to operate over the 2 to 18 GHz frequency range. Employs planar diode detectors and integrated video circuitry for high-speed performance and outstanding reliability and offers superior construction using state of the art MIC/MMIC technology. Hermetically sealed housing measures 3.5" x 3.2" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| TSS (dBm): | -70 Min |
| Output Voltage: | +2.5 V Max |
| Log Slope (mV/dB): | 25 ± 1 at Room Temperature 25 ± 2 over Room Temperature, 25 Typ |
| Log Range (dBm): | -60 to +7 |
| Log Linearity: | ±1.5 dB Max at Room Temperature ±2.0 dB Max over Room Temperature |
| Rise Time: | 30 ns Max |
| Recovery Time: | 100 ns Max |
| Power Supply: | +12 to +15.5 VDC @ 400 mA -12 to -15.5 VDC @ 165 mA |
| VSWR: | 2.3:1 Max |
| Flatness: | 100 mV Max |
| Video Bandwidth: | 10 dB Typ |
| Video Load (Ohms): | 75 |
| Immune Power (CW): | 23 dBm Max CW |
| Throughput Time: | 30 ns Max |
| Offset Voltage: | ±50 mV Max |
| Connectors: | SMA Female |
| Size: | 3.5" x 3.2" x 0.5" |
| Finish: | Electroless Nickel Plate |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +85 ºC |
| Non-Operating Temperature: | -57 ºC to +85 ºC |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A Functional Shock: 196 m/s, 6(squared)~9ms |
| Humidity: | MIL-HDBK-5400 4.6.2.4 100% RH |
| Shock: | MIL-HDBK-5400 4.6.2.6 |
| Vibration: | MIL-STD-810F ANNEX C, FIG. 514.5C-8 |
| Altitude: | 0 ~ 43, 000 FT |
