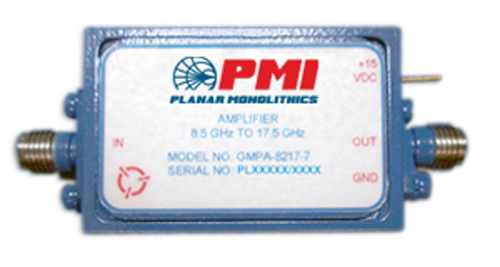

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 8.5 to 17.5 |
|---|
| Frequency Min (GHz): | 8.5 |
|---|
| Frequency Max (GHz): | 17.5 |
|---|
| Gain (dB): | 9 dB Max |
|---|
| Gain (Measured): | 9 dB Max - Measured 8.79 dB |
|---|
| Noise Figure (dB): | -85 dBm / MHz Max |
|---|
| OP1dB (dBm): | 22 dBm Min |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.82:1 |
|---|
| DC Voltage (VDC): | +15 VDC |
|---|
| DC Current (mA): | 700 mA |
|---|
| Impedance: | 50 Ohm |
|---|
| In-Band Harmonics: | -10 dBc @ +19 dBm Input - Measured -29.85 dBc |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.56" x 1.00" x 0.60" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
