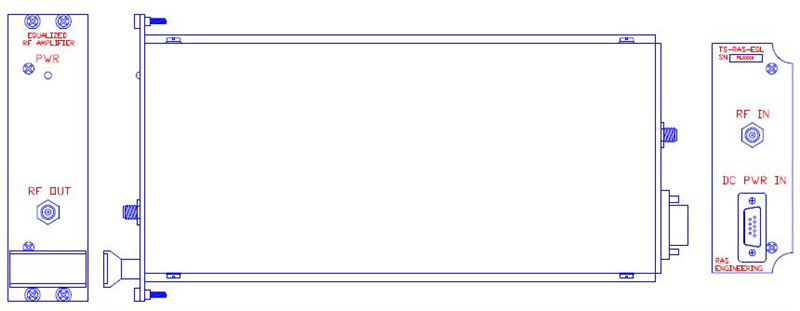

GTSC-18-2M18G-6R0-13-SFF-EQL Active
Equalized RF Amplifier
Additional Documents
Quantic PMI Model GTSC-18-2M18G-6R0-13-SFF-EQL is an Equalized RF Amplifier that operate over the 0.002 to 18 GHz frequency range with an OP1dB of 10 dBm @ 18 GHz. Features includes Power on indicator & SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.002 to 18 |
| Frequency Min (GHz): | 0.002 |
| Frequency Max (GHz): | 18 |
| Gain (dB): | Cable Correction Curve |
| OP1dB (dBm): | 10 dBm Min (@ 18 GHz) |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +15 VDC |
| DC Current (mA): | 350 mA Max |
| Connectors: | SMA Female - removable |
| Export Classification (ECCN): | EAR99 |
