HADA-D1009
Preliminary
DC Coupled Detector Log Video Amplifier
Quantic PMI Model HADA-D1009 is a DC Coupled Detector Log Video Amplifier that operates from 3 to 3.4 GHz.
Product Specifications
| General Parameters: |
|---|
| Type: | DLVA |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 3 to 3.4 GHz |
|---|
| Frequency Min: | 3 GHz |
|---|
| Frequency Max: | 3.4 GHz |
|---|
| TSS: | -73 dBm Max |
|---|
| TSS (Measured): | -73 dBm Max |
|---|

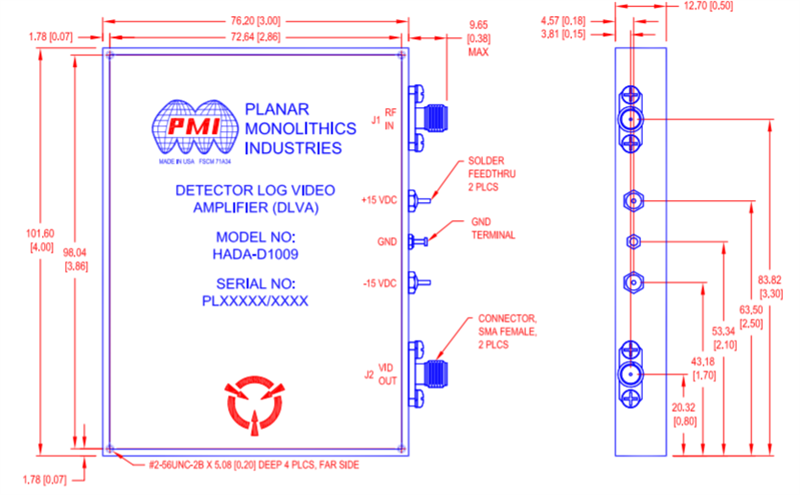

| Size: | 3.0" x 4.0" x 0.5" |
|---|
| Output Voltage: | +2.5 V Max |
|---|
| Log Slope: | +50 ± 3 mV/dB |
|---|
| Log Range: | -70 to +3 dBm |
|---|
| Log Linearity: | ±1.0 dB |
|---|
| Rise Time: | 20 ns Max |
|---|
| Recovery Time: | 0.5 µs |
|---|
| Power Supply: | +12 to +15.5 VDC @ 450 mA Max,
-12 to -15.5 VDC @ 150 mA Max |
|---|
| Finish: | Electroless Nickel Plate |
|---|
| VSWR: | 2.0:1 Max (2.0 to 4.0 GHz) |
|---|
| Weight: | 200 g Max |
|---|
| Video Load Impedance: | 93 O Typ |
|---|
| Flatness: | 50 mV Max |
|---|
| RF Safe Input Power: | +20 dBm Max CW (Without Damage) |
|---|
| Video Output: | 600 mV ± 100 mV @3.2 GHz, 25 °C, -70 dBm |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +70 ºC |
|---|
| Humidity: | 95% @ 70Deg C max |
|---|
| Vibration: | 16Hz, 3mm/3G |
|---|
| Altitude: | 0 - 7000 FT |
|---|
