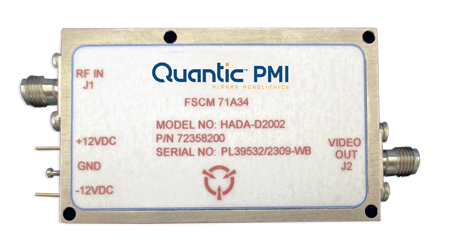

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -40 Min |
|---|
| TSS (Measured): | -40 dBm Min @ -40 ºC to +85 ºC (Video In) -
Measured -43 dBm |
|---|
| Log Linearity: | ±0.5 dB Max @ +25 ºC - Measured +0.37 / -0.40 dB,
±0.75 dB Max @ +40 ºC to +85 ºC - Measured +0.51 / -0.73 dB @ -40 °C, +0.31 / -0.44 dB @ +85 °C |
|---|
| Rise Time: | 30 ns Max (10% to 90%) - Measured 18.762 ns |
|---|
| Fall Time: | 500 ns Max (@ Pulse width 100 µs Input) (90% to 10%)
- Measured 105.785 ns |
|---|
| Power Supply: | +12 ± 1 VDC @ 125 mA Max - Measured +98 mA,
-12 ± 1 VDC @ 75 mA Max - Measured -48 mA |
|---|
| Duty Cycle: | 100% |
|---|
| Frequency Flatness: | ±1.65 dB Max - Measured ±0.45 dB |
|---|
| VSWR: | 3.0:1 Max @ +23 dBm - Measured 1.719:1 |
|---|
| Maximum Input Power (CW): | +23 dBm |
|---|
| Propagation Delay: | 60 ns Max - Measured 21.99 ns |
|---|
| DC Offset: | +95 mV +55/-100 mV @ +40 ºC to +85 ºC -
Measured +83 mV |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 2.50" x 1.50" x 0.44" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -57 ºC to +85 ºC |
|---|
| Humidity: | 90% to 98% RH MIL-STD-202F, Method 106 |
|---|
| Shock: | 30G, MIL-STD-202F, Method 213B Cond. C |
|---|
| Vibration: | 10 to 55Hz (0.06DA), 55 to 2000Hz (10G) MIL-STD-202F, Method 204 Cond. C |
|---|
| Altitude: | 20, 000 Feet, MIL-STD-202F, method 105 |
|---|
