| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -40 Min @ -40 °C to +85 °C |
|---|
| Log Slope (mV/dB): | 50 |
|---|
| Log Range (dBm): | 40 |
|---|
| Log Linearity: | ±0.5 dB Max @+25 °C
±0.75 dB Max @ -40 to +85 °C |
|---|
| Rise Time: | 30 ns Max (10% to 90%) |
|---|
| Fall Time: | 500 ns Max (@ PW 100 µs Input) (90% to 10%) |
|---|
| Power Supply: | +12 ± 1 VDC @ 125 mA Max
-12 ± 1 VDC @ 75 mA Max |
|---|
| Duty Cycle: | 100% |
|---|
| Frequency Flatness: | ±1.65 dB Max |
|---|
| Maximum Input Power (CW): | +23 dBm |
|---|
| Propagation Delay: | 60 ns Max |
|---|
| DC Offset: | +95 mV +55 / -100 mV
(@-40 °C to +85 °C) |
|---|
| Log Accuracy: | ±1.5 dB Max (@+25 °C, 10 GHz) |
|---|
| Warm Up Time: | 2 Minutes Max |
|---|
| Input VSWR: | 3.0:1 Max @ +23 dBm |
|---|
| Connectors: | SMA Female |
|---|

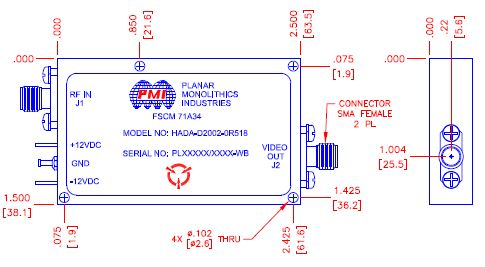

| Size: | Per Figure |
|---|
| Finish: | Nickel Plating |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to + 85 °C |
|---|
| Non-Operating Temperature: | -57 °C to + 85 °C |
|---|
| Humidity: | 90% TO 98% RH MIL-STD-202F, METHOD 106 |
|---|
| Shock: | 30G, MIL-STD-202F, METHOD 213 COND. C |
|---|
| Vibration: | 10 TO 55Hz (0.06DA), 55 TO 2000Hz (10G)
MIL-STD-202F, METHOD 204 COND. C |
|---|
| Altitude: | 20, 000 FEET, MIL-STD-202F, METHOD 105 |
|---|
