HP-10M18G-PE2-SFF Active
High Passband Filter

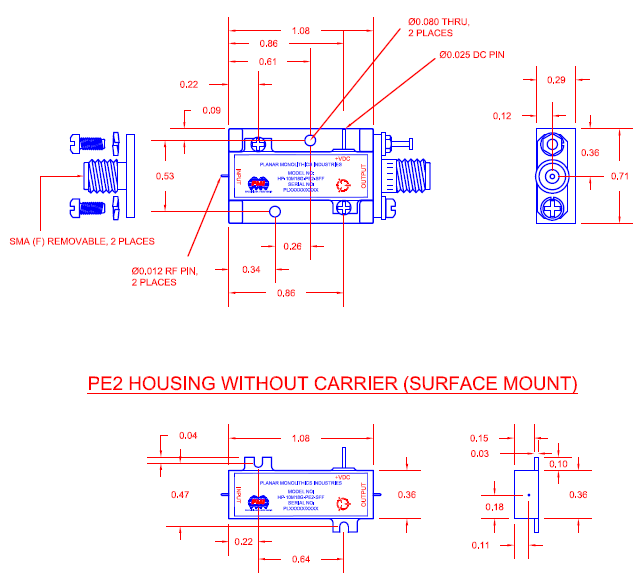

Quantic PMI Model HP-10M18G-PE2-SFF is a high passband filter operating over the 0.01 to 18 GHz frequency range. This model offers 75 dB of rejection at 0.001 GHz, a typical insertion loss of 1.5 dB typical, and a VSWR of 1.5:1 typical. This model is supplied in our standard PE2 housing that measures 1.08" x 0.71" x 0.32" and has removable SMA female connectors for use in surface mount or connectorized applications.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 0.01 to 18 |
| Cut-Off Frequency (GHz): | 0.01 |
| Passband Insertion Loss (dB): | 1.5 dB Typ |
| Rejection: | 75 dB @ 0.001 GHz |
| Insertion Loss: | 1.5 dB Typ |
| VSWR: | 1.5:1 Typ |
| Connectors: | SMA Female - removable |
| Size: | 1.08" x 0.71" x 0.29" |
| Housing: | PE2 |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -54 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
