HP-118-CD-SFF-ROHS Active
Broadband High Pass Filter

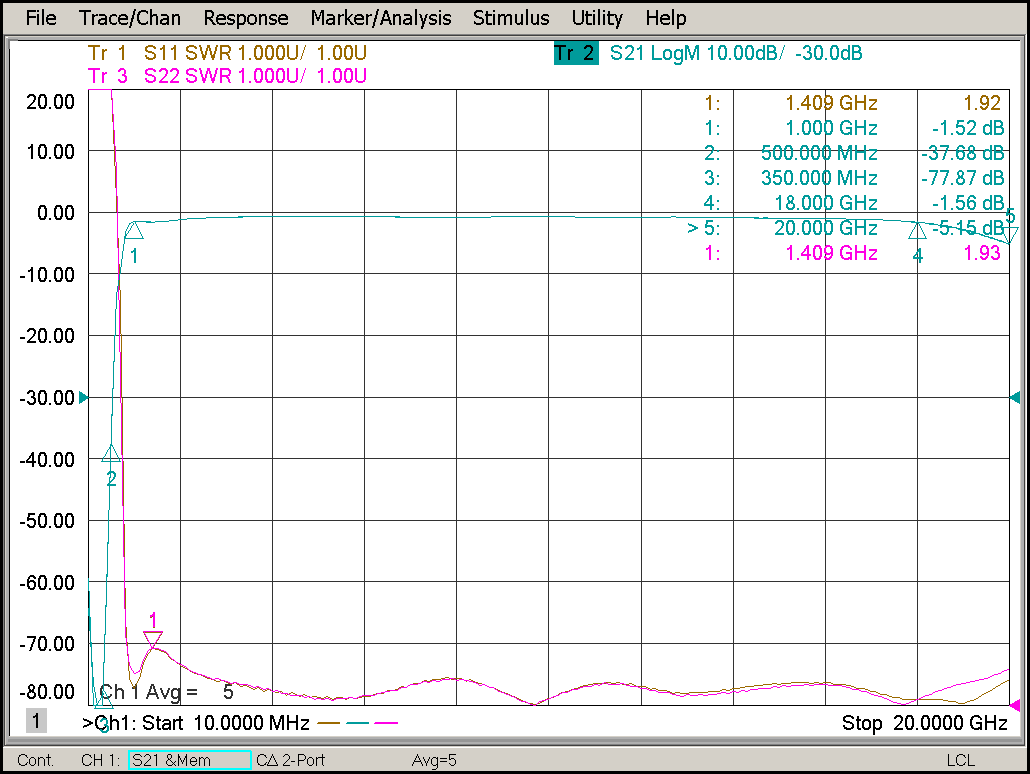

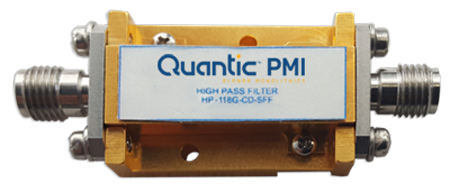

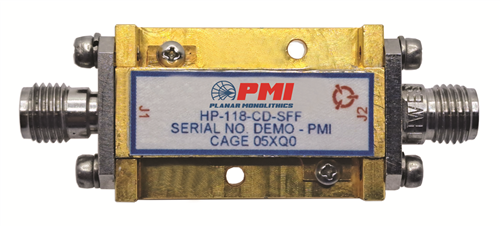

Quantic PMI Model HP-118-CD-SFF-ROHS is a broadband high pass filter having a passband of 1 to 18 GHz Cut-Off Frequency is 1 GHz with a maximum passband insertion loss of 2 dB typical from 1 to 18 GHz that provides 60 dB minimum rejection at 0.5 GHz. This model is supplied in our standard PE2 housing that measures 1.08" x 0.71" x 0.32" and has removable SMA female for use in surface mount or connectorized applications.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 1 to 18 |
| Cut-Off Frequency (GHz): | 1 |
| Passband Insertion Loss (dB): | 4 dB Max (@ 1 GHz), 2 dB Max (2 to 18 GHz) |
| Passband VSWR: | 2.0:1 Max |
| Rejection: | 60 dB Min @ 0.5 GHz |
| Operating Input Power: | 10 W CW |
| Connectors: | SMA Female |
| Size: | 1.08" x 0.71" x 0.32" |
| Housing: | PE2 |
| Weight: | 1 oz Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
