HP-120-CD-50W-SFF Active
High Pass Filter

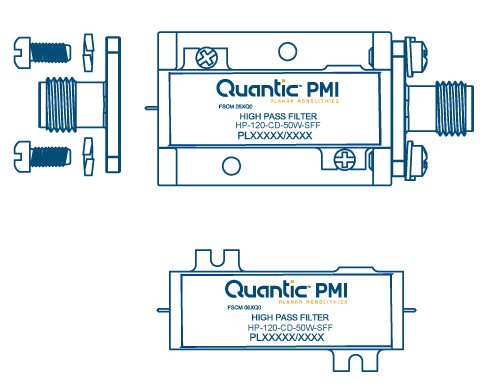

Quantic PMI Model HP-120-CD-50W-SFF is a broadband high pass filter having a passband of 1 to 20 GHz that offers 60 dB rejection @ 0.5 GHz with a passband insertion loss of 3 dB at 20 GHz. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 1 to 20 |
| Rejection: | 60 dB Min (DC to 5 GHz) |
| Operating Input Power: | 50 W CW |
| Insertion Loss: | 4 dB Max (@ 1 GHz), 2 dB Max (2 to 18 GHz), 3 dB Max (18 to 20 GHz) |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female - removable |
| Size: | 1.08" x 0.71" x 0.26" |
| Housing: | PE2 |
| Weight: | 1 oz Typ |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
