HP-1D2G18G-CD-SFF Active
High Pass Filter

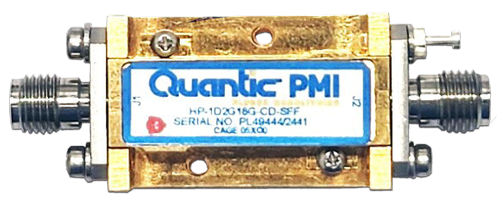

Quantic PMI Model HP-1D2G18G-CD-SFF is a broadband high pass filter having a passband of 1.2 to 18 GHz. Cut-Off Frequency is 1.2 GHz with a insertion loss of 2.5 dB maximum @ 1.5 to 18 GHz and a 26 dB minimum rejection at 0.9 GHz and 37 GHz minimum rejection at 0.835 GHz This model is supplied in our standard PE2 housing that measures 1.08" x 0.71" x 0.32" and has removable SMA female connectors for use in surface mount or connectorized applications.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 1.2 to 18 |
| Cut-Off Frequency (GHz): | 1.2 |
| Passband Insertion Loss (dB): | 4.1 dB Max (1.2 to 1.5 GHz), 2.5 dB Max (1.5 to 18 GHz) |
| Passband VSWR: | 2.0:1 Max |
| Rejection: | 26 dB Min @ 0.9 GHz 37 dB Min @ 0.835 GHz |
| Connectors: | SMA Female |
| Size: | 1.08" x 0.71" x 0.32" |
| Housing: | PE2 |
| Weight: | 1 oz. Typ |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204B Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
