HP-2G18G-SFM Active
High Pass Filter
Quantic PMI Model HP-2G18G-SFM is a high pass filter designed to pass signals between 2 and 18 GHz that features 1 dB insertion loss and 40 dBc rejection below 1.5 GHz. Package size is 1.38" x 1.38" x 0.5" and comes equipped with SMA female / male connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 2 to 18 |
| Cut-Off Frequency (GHz): | 2 |

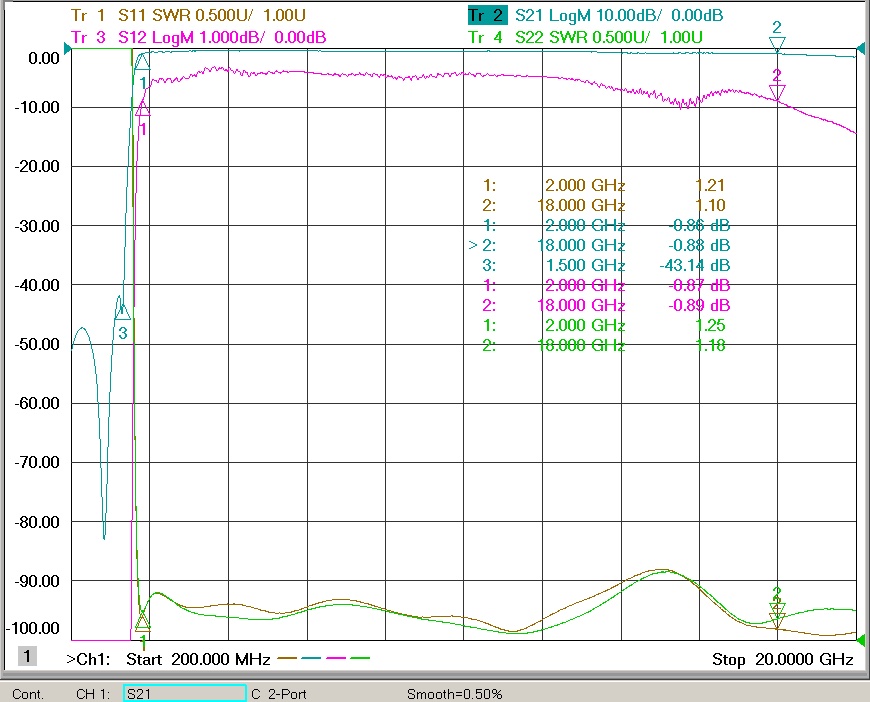

| Passband Insertion Loss (dB): | 1 dB Max |
| Rejection: | 40 dBc Min @ DC to 1.5 GHz |
| Input Power: | 1 W Max |
| VSWR: | 2:1 Max |
| Connectors: | SMA Male / Female |

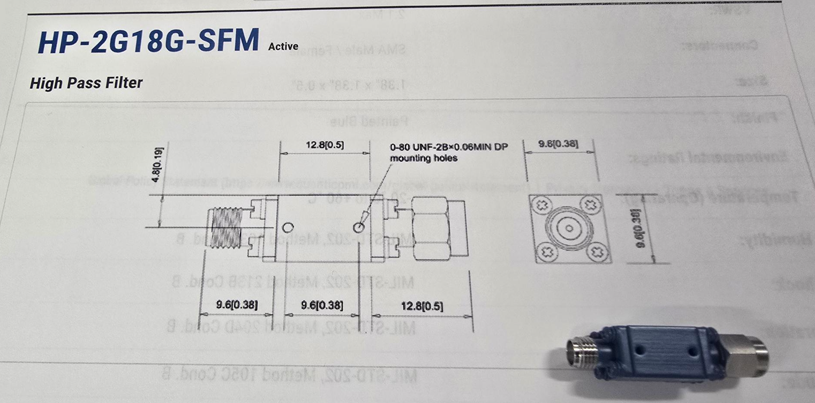

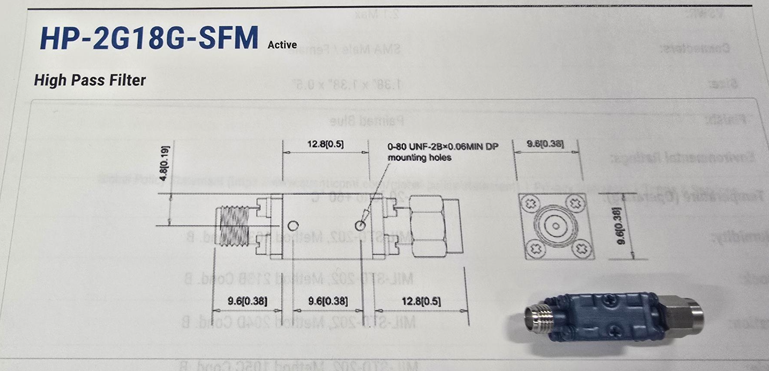

| Size: | 1.38" x 1.38" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -20 ˚C to +60 ˚C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
