HP-55G57G-185FF Active
High Pass Filter

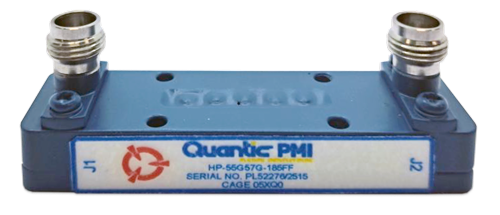

Quantic PMI Model HP-55G57G-185FF is a high pass filter having a passband of 55 to 57 GHz. Cut-Off Frequency is 50 GHz with a maximum passband insertion loss of 2 dB. This model provides 50 dB minimum rejection from 34 to 45 GHz. Package size is 1.97" x 0.55" x 0.33" and is equipped with 1.85mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 55 to 57 |
| Cut-Off Frequency (GHz): | 50 |
| Passband Insertion Loss (dB): | 2 dB Max |
| Passband VSWR: | 1.5:1 Max |
| Rejection: | 50 dB Min @ 34 to 45 GHz |
| Input Power: | 2 W CW Max |
| Connectors: | 1.85mm Female |
| Size: | 1.97" x 0.55" x 0.33" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ˚C to +85 ˚C |
| Temperature (Storage): | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
