HP-800-600-S-S-3A Active
Broadband High Pass Filter

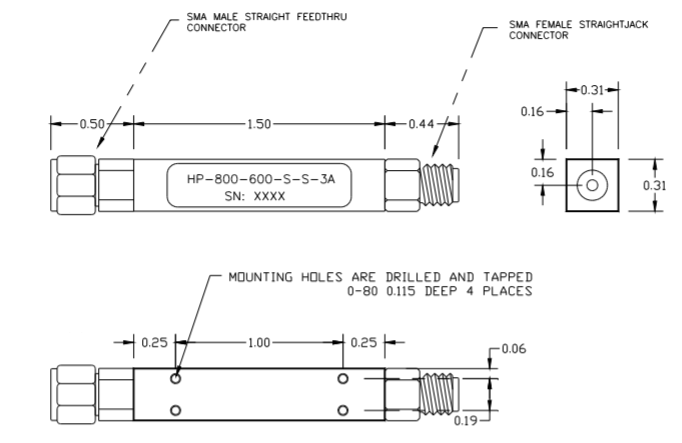

Quantic PMI Model HP-800-600-S-S-3A Broadband High Pass Filter used to reject video transient with a passband frequency of 0.8 to 5 GHz. This model offers -30 dB of rejection at 0.5 MHz, a passband insertion loss of 0.5 dB, and a VSWR of 1.5:1 typical packaged in our standard PE2 housing, 1.5" x 0.31" x 0.31" with SMA male/female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 0.8 to 5 |
| Cut-Off Frequency (GHz): | 0.8 |
| 3 dB Bandwidth: | 0.6 |
| Passband Insertion Loss (dB): | 0.5 dB Max |
| Passband VSWR: | 1.5:1 dB Max |
| Rejection from DC to 0.5 GHz: | -30 dB Min |
| Connectors: | SMA Male / Female |
| Size: | 1.50" x 0.31" x 0.31" |
| Weight: | 1 oz |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
