HP0R3G-18G-CD-SFF Active
Broadband High Pass Filter
Buy Now
Additional Documents

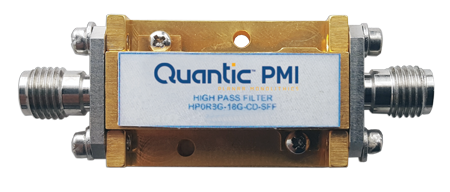

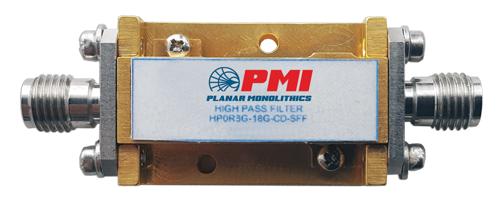

PMI Model HP0R3G-18G-CD-SFF is a broadband high pass filter having a passband of 0.3 to 18 GHz. Cut-Off Frequency is 0.3 GHz with a typical passband insertion loss of 2 dB that provides 45 dB typical rejection at 0.01 GHz. This model is supplied in our standard PE2 housing that measures 1.08" x 0.71" x 0.32" and has removable SMA female connectors for use in surface mount or connectorized applications.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 0.3 to 18 |
| Cut-Off Frequency (GHz): | 0.3 |
| Passband Insertion Loss (dB): | 2 dB Typ |
| Passband VSWR: | 2.0:1 Max |
| Rejection: | 45 dB Typ @ 0.01 GHz |
| Operating Input Power: | 1 Watt CW Max |
| Input Power: | 10 W |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female - removable |
| Size: | 1.08" x 0.71" x 0.32" |
| Housing: | PE2 |
| Weight: | 1 oz Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
