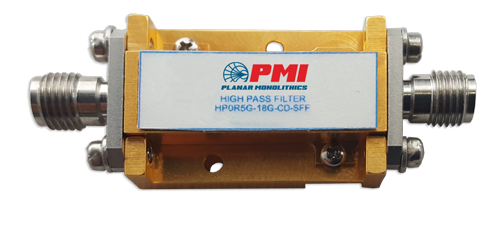

PMI Model No. HP0R5G-18G-CD-SFF is a a high pass filter having a passband of 500 to 18,000MHz.

Product Specifications

General Parameters:
Status: Active
Passband: 0.5 to 18 GHz
3dB Bandwidth: (3dB point at 500MHz)
Passband Insertion Loss: 2.0 dB typ.
Passband VSWR: 2.0:1 typ.
Rejection: -40 dBc typ. @ 300 MHz
Size: 1.00" x 0.71" x 0.32"
Connectors In/Out: SMA Female
Weight: 1 oz. typ.
Environmental Ratings:
Temperature (Operating): -55ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
