HP0R5G-18G-CD-SFM Preliminary
High Pass Filter

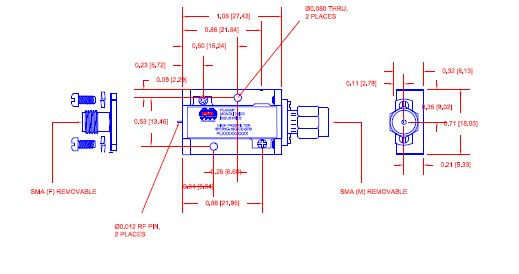

Quantic PMI Model HP0R5G-18G-CD-SFM is a high pass filter having a passband of 0.5 to 18 GHz. Cut-Off Frequency is 0.5 GHz with a passband insertion loss of 2 dB from 1 to 16 GHz that provides 40 dB minimum rejection at 0.3 GHz. This model is supplied in our standard PE2 housing that measures 1.08" x 0.71" x 0.32" and has removable SMA female / male connectors for use in surface mount or connectorized applications.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband Frequency (GHz): | 0.5 to 18 |
| Cut-Off Frequency (GHz): | 0.5 |
| Passband Insertion Loss (dB): | 5 dB Max (0.5 GHz), 2 dB Max (1 to 16 GHz), 3 dB Max (18 to 16 GHz) |
| Passband VSWR: | 2.0:1 Max |
| Rejection: | 40 dB Min @ 0.3 GHz |
| Connectors: | SMA Female/Male - removable |
| Size: | 1.08" x 0.71" x 0.18" |
| Housing: | PE2 |
| Weight: | 1 oz Typ |
| Finish: | GOLD Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
