HP10G-9D7-CD-292FF Active
Suspended Substrate Bandpass Filter
Buy Now

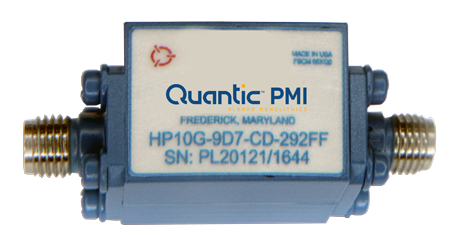

Quantic PMI Model HP10G-9D7-CD-292FF is 10 to 27 GHz, Suspended Substrate Bandpass Filter with a Cut-Off Frequency of 9.7 GHz and a maximum passband insertion loss of 1.5 dB. This model provides -40 dBc rejection at 7 GHz. Package size is 0.65" x 0.65" x 0.50" and contains 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 10 to 27 |
| Cut-Off Frequency (GHz): | 9.7 |
| Passband Insertion Loss (dB): | 1.5 dB Max |
| Passband VSWR: | 2.0:1 Max - Measured 1.94:1 |
| Rejection: | -40 dBc @ 7 GHz - Measured 74 dB |
| Input Power: | 50 W |
| Connectors: | 2.92mm Female |
| Size: | 0.65" x 0.65" x 0.50" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, 508.2 |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
