HP19G40G-292FF Preliminary
High Pass Fiter
Additional Documents

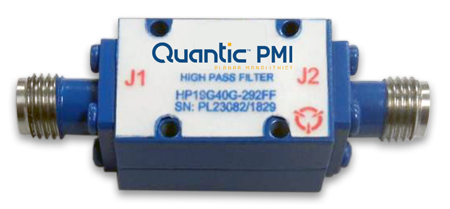

Quantic PMI Model HP19G40G-292FF is a High Pass Filter with a Passband of 19 to 40 GHz. Package size 0.79" x 0.51" x 0.39" with 2.92mm Female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband Frequency (GHz): | 19 to 40 |
| Cut-Off Frequency (GHz): | 19 |
| Passband Insertion Loss (dB): | 2 dB Typ, 2.5 dB |
| Passband VSWR: | 2.0:1 Max |
| Rejection: | 50 dB Min |
| Operating Input Power: | 5 W Max |
| Impedance: | 50 Ohm |
| Connectors: | 2.92mm Female |
| Weight: | 25 g |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
