HP20G-19D5-CD-SS

Model HP20G-19D5-CD-SS is a a high pass filter having a passband of 18,000 to 35,000MHz.

Product Specifications

General Parameters:
Status: Active
Passband: 18 to 35 GHz
Cut-Off Frequency: 17,200MHz
Passband Insertion Loss: 1.5dB
Passband VSWR: 2.0:1
Rejection: -54dBc @ 14.5GHz

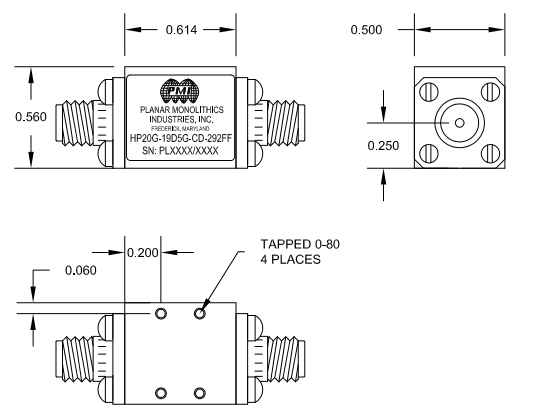

Size: 0.614"L x 0.56"W x 0.50"H
Connectors In/Out: SMA(F/F)
Environmental Ratings:
Temperature (Operating): -40ºC to +85 ºC
Temperature (Storage): -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
