HP2G-1780-CD-SFM Preliminary
Suspended High Pass Filter

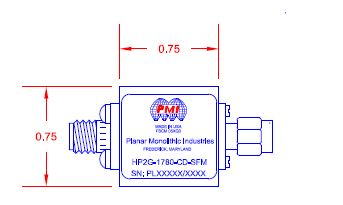

Quantic PMI Model HP2G-1780-CD-SFM is a suspended high pass filter having a passband of 2 to 18 GHz with a Cut-Off Frequency of 2 GHz and a maximum passband insertion loss of 0.5 dB. This model provides 80 dB minimum rejection at 0.87 GHz. Package size is 0.75" x 0.75" x 0.50" and contains SMA female / male connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband Frequency (GHz): | 2 to 18 |
| Cut-Off Frequency (GHz): | 2 |
| 3 dB Bandwidth: | 1.78 |
| Passband Insertion Loss (dB): | 0.5 dB Typ |
| Passband VSWR: | 1.5:1 Typ |
| Rejection @ 0.87 GHz: | 80 dB Min |
| Connectors: | SMA Female / Male |
| Size: | 0.75" x 0.75" x 0.50" |
| Weight: | 1 oz |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
