HP2G-1780-CD-SMF
Preliminary

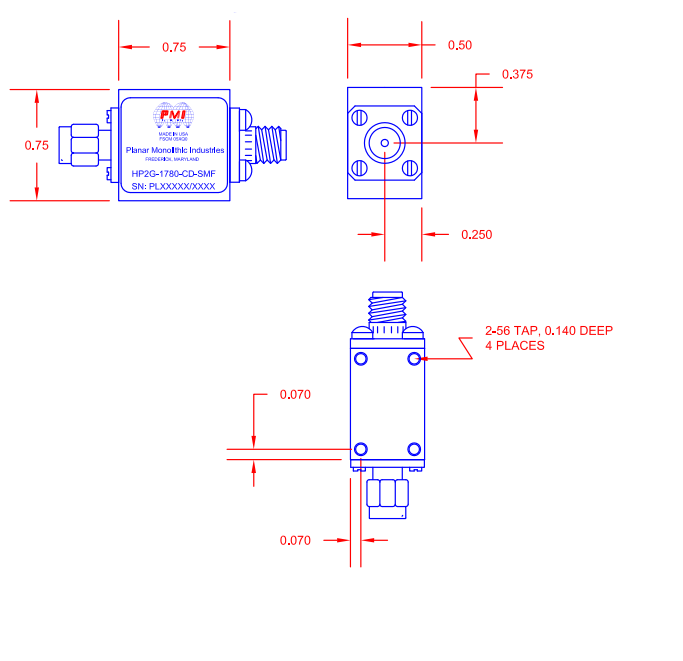

PMI model HP2G-1780-CD-SMF is a suspended highpass filter with SMA male / female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Passband: | 2.0 to 18.0 GHz |
|---|
| Cut-Off Frequency: | 2.0 GHz |
|---|
| 3dB Bandwidth: | 1.78 GHz |
|---|
| Passband Insertion Loss: | 0.5 dB Typ |
|---|
| Passband VSWR: | 1.5:1 Typ |
|---|
| Size: | 0.750" (L) x 0.750" (W) x 0.50" (H) |
|---|
| Connectors In/Out: | SMA MALE / FEMALE |
|---|
| Finish: | PAINTED BLUE |
|---|
| Weight: | 1 OZ. Typ |
|---|
| Rejection @ 870 MHz: | 80 dB Min |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55° C TO +85°C |
|---|
| Temperature (Storage): | -65° C TO +125°C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
