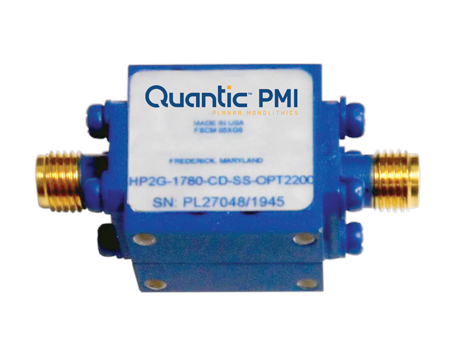

HP2G-1780-CD-SS-OPT2200 Active
High Pass Filter
Additional Documents
- Product Feature
- S-Parameters
- Test Report - 1/13/21
- Unit Data
- PL33127 - Unit Data
- PL33128 - Unit Data
- PL33129 - Unit Data
- PL33130 - Unit Data
- PL33131 - Unit Data
- PL33132 - Unit Data
- PL33133 - Unit Data
- PL33134 - Unit Data
- PL33135 - Unit Data
- PL33136 - Unit Data
- PL33137 - Unit Data
- PL33138 - Unit Data
- PL33530 - Unit Data
- PL33531 - Unit Data
- PL33532 - Unit Data
- PL33533 - Unit Data
- PL33534 - Unit Data
- PL33535 - Unit Data
- PL33536 - Unit Data
- PL33537 - Unit Data
- PL33538 - Unit Data
- PL33539 - Unit Data
- PL33540 - Unit Data
- PL33541 - Unit Data
- PL33542 - Unit Data
- PL33543 - Unit Data
Quantic PMI Model HP2G-1780-CD-SS-OPT2200 is a high pass filter having a passband of 2.5 to 18 GHz. Cut-Off Frequency is 18 GHz with a typical passband insertion loss of 0.5 dB. This model provides 30 dB typical rejection at 1.7 GHz. Package size is 0.75" x 0.75" x 0.50" and contains SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 2.5 to 18 |
| Cut-Off Frequency (GHz): | 2.5 |
| 3 dB Bandwidth: | 2.2 |
| Passband Insertion Loss (dB): | 0.5 dB Typ, 1 dB Max |
| Passband VSWR: | 1.5:1 Typ, 2.0:1 Max |
| Rejection: | 80 dB Min @ 0.87 GHz 30 dB Min @ 1.78 GHz |
| Input Power: | 50W |
| Connectors: | SMA Female |
| Size: | 0.75" x 0.75" x 0.50" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
