HP3360-185FF Preliminary
High Pass Filter

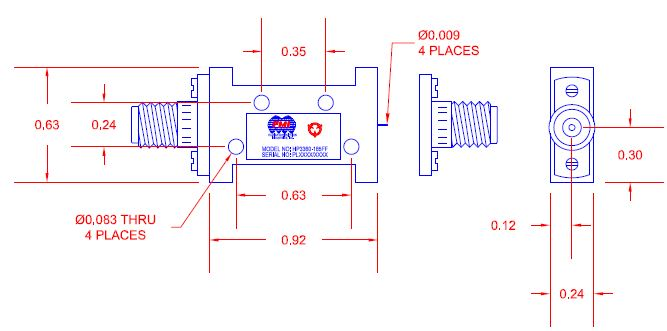

Quantic PMI Model HP3360-185FF is a High Pass Filter that operates over the frequency range of 33 to 60 GHz with a maximum insertion loss of 2.5 dB and a maximum VSWR of 2.5:1. Package size is 0.92" x 0.63" x 0.24" with 1.85mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband Frequency (GHz): | 33 to 60 |
| Cut-Off Frequency (GHz): | 33 |
| Frequency Range (-1 dB Bandwidth): | 33 to 60 |
| Passband Insertion Loss (dB): | 2.5 dB Max |
| Rejection @ 30 GHz: | 40 dB Min |
| Input Power: | 1 W Typ |
| Impedance: | 50 Ohm |
| Insertion Loss: | 2.5 dB Max |
| VSWR: | 2.5:1 Max |
| Connectors: | 1.85mm Female |
| Size: | 0.92" x 0.63" x 0.24" |
| Finish: | Silver Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
