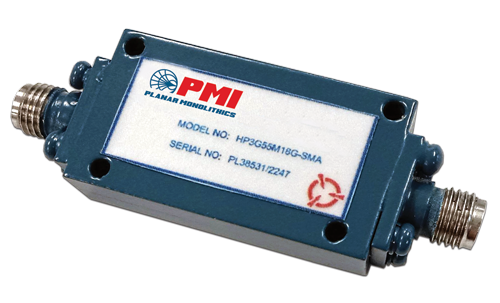

HP3G55M18G-SMA Active
High Pass Filter
Buy Now
Additional Documents
- Product Feature
- Test Report - 11/22/22
- S - Parameters
- 3D Model
- PL38531 - Unit Data
- PL38552 - Unit Data
- PL38553 - Unit Data
- PL38554 - Unit Data
- PL38555 - Unit Data
- PL38556 - Unit Data
- PL38557 - Unit Data
- PL38558 - Unit Data
- PL38559 - Unit Data
- PL41323 - Unit Data
- PL41324 - Unit Data
- PL41325 - Unit Data
- PL41326 - Unit Data
- PL41327 - Unit Data
- PL41328 - Unit Data
- PL41329 - Unit Data
- PL41330 - Unit Data
- PL41331 - Unit Data
PMI Model HP3G55M18G-SMA is a high pass filter that operates over the frequency range of 3.55 to 18 GHz that has a maximum insertion loss of 1.5 dB and a maximum VSWR of 2.0:1. Supplied with SMA female connectors in a housing measuring 1.26" x 0.71" x 0.39".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 3.55 to 18 |
| Cut-Off Frequency (GHz): | 3.55 |
| Passband Insertion Loss (dB): | 1.5 dB Max |
| Rejection: | 55 dB Min at DC to 2.8 GHz |
| Input Power: | 10 W Max |
| Impedance: | 50 Ohm |
| Insertion Loss: | 1.5 dB Max |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 1.26" x 0.71" x 0.39" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
